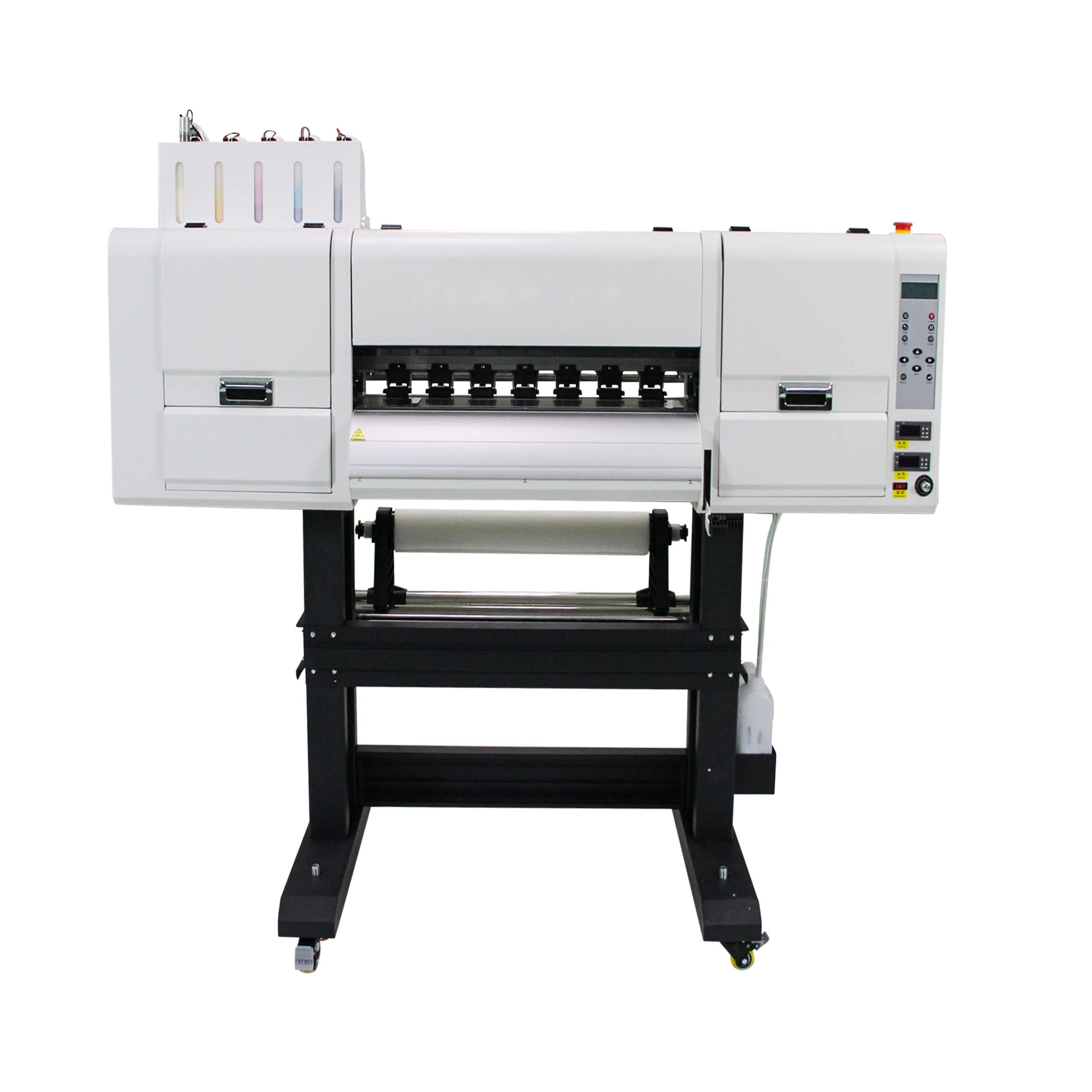

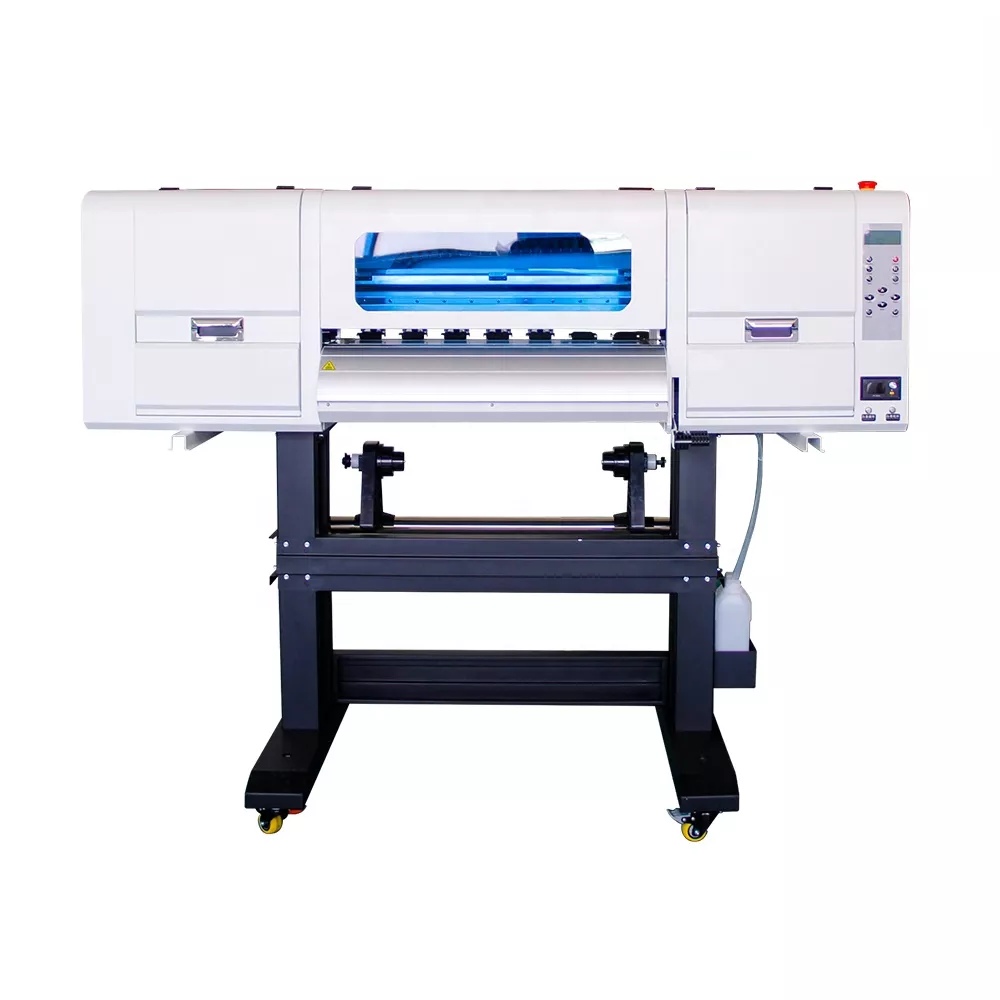

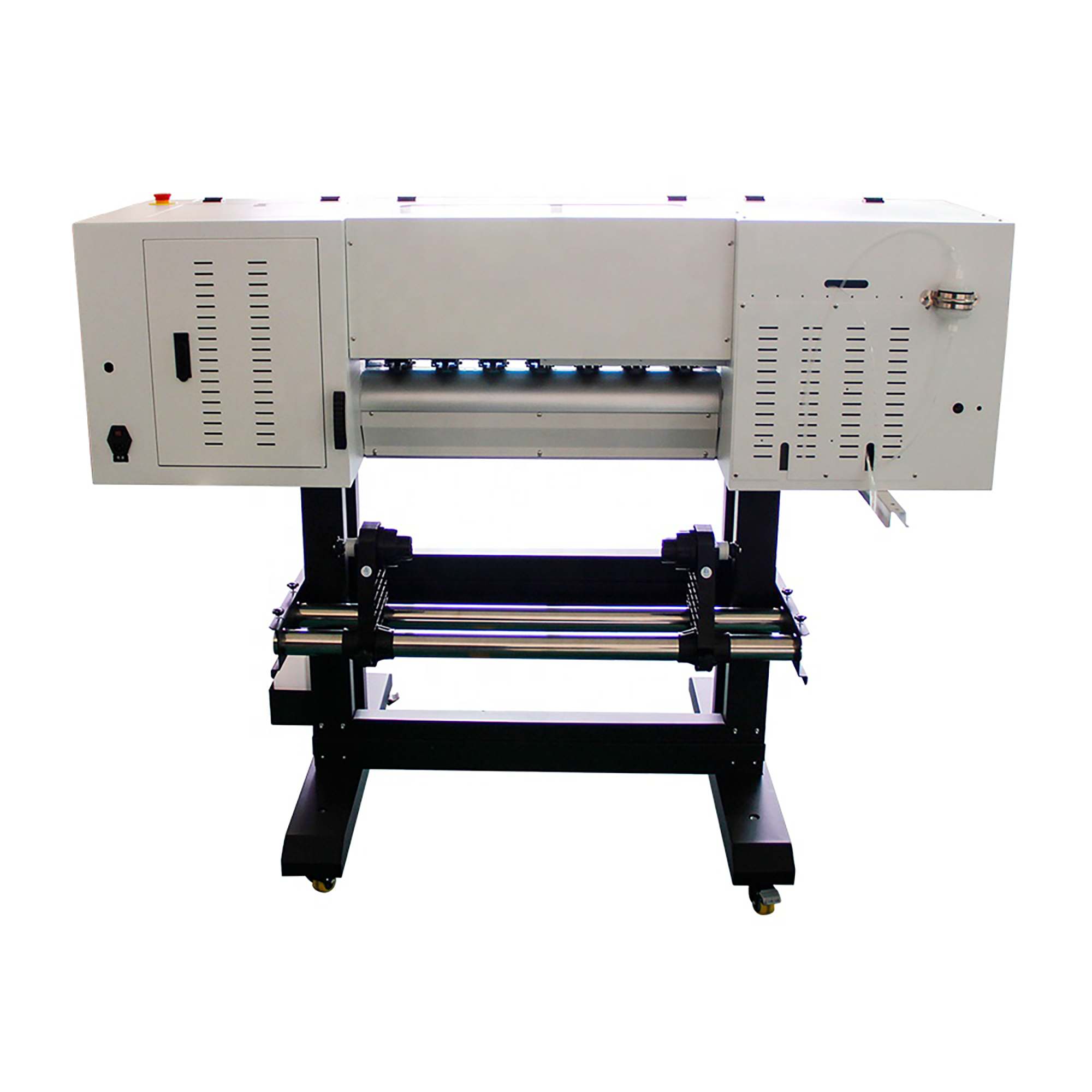

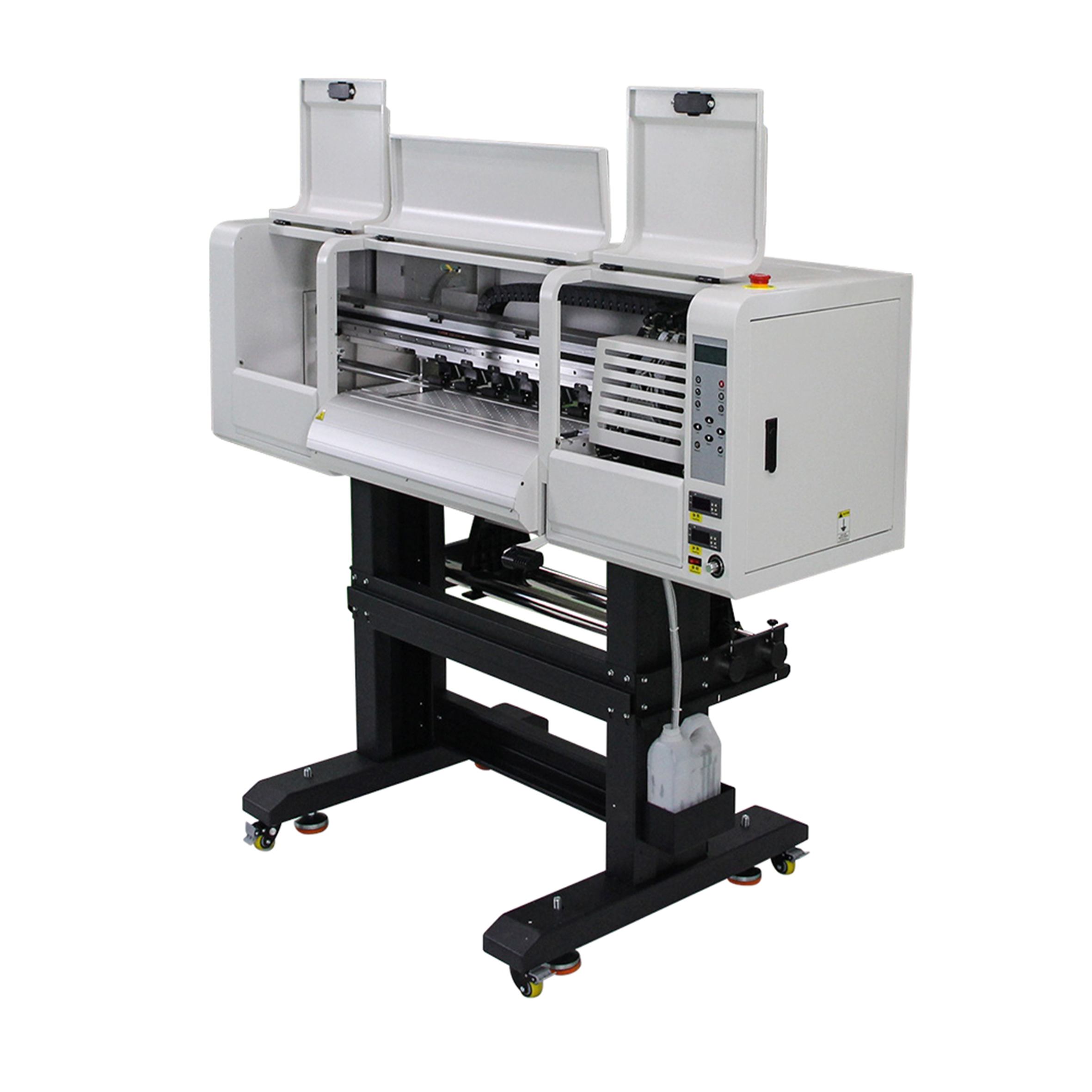

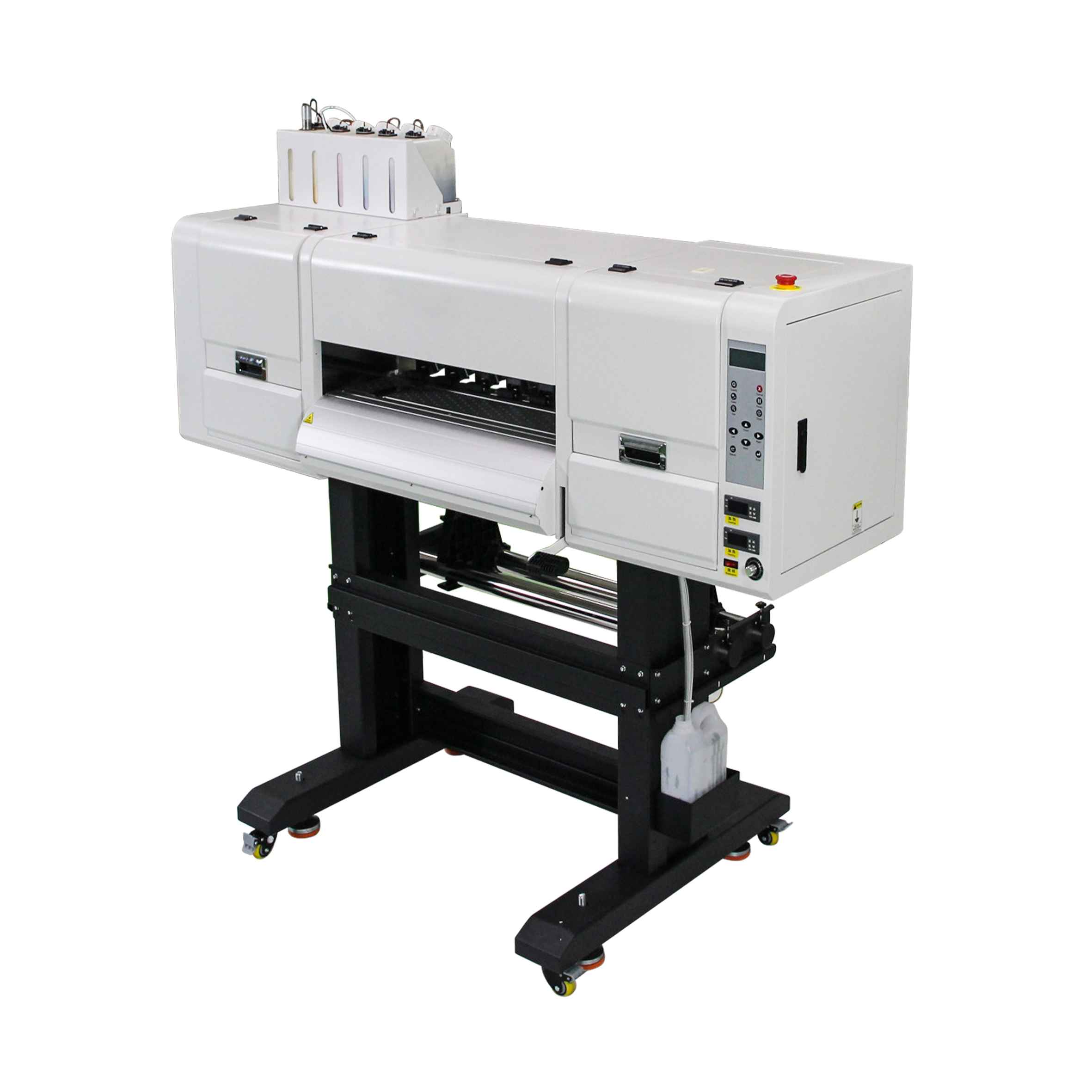

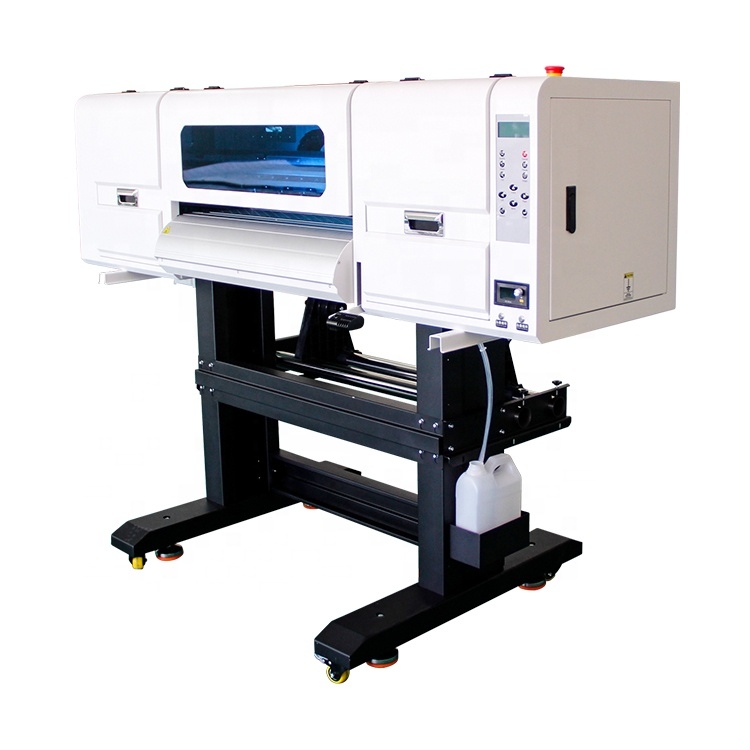

UniPrint DTF tshuab luam ntawv
Technical Parameters
| Lub tshuab luam ntawv qauv | TIAB SA 602 | TIAB SA 604 |
| Sau taub hau | Epson i3200-A1 2 pcs | Epson i3200-A1 4 pcs |
| Sau Dav | 60CM MAX WIDTH | |
| Luam nrawm | 4PASS 16㎡/H | 4PASS 28㎡/H |
| 6PASS 13㎡/H | 6PASS 21㎡/H | |
| 8PASS 10㎡ / H | 8PASS 14㎡/H | |
| Hom cwj mem | Textile Pigment Ink | |
| Xim Xim | CMYK + Dawb | CMYKW los yog CMY K + Fluo (Daj / Pink / Txiv kab ntxwv / Ntsuab) + Dawb |
| Daim ntawv thov | Textile tsoos tsho nrog cov ntaub sib txawv xws li T-shirts.Hoodies, Totes, Jeans lossis Caps thiab lwm yam | |
| Software | Sau Exp/RIPRINT | |
| Cov Lus Ua Haujlwm | Lus Askiv, Suav. | |
| Kev ua haujlwm system | Windows WIN7/WIN8/WIN10 (32-ntsis/64-ntsis) | |
| Interface | Network Interface | |
| Duab hom | Png, Jpg, Tiff, Eps, Pdf | |
| Voltage / Lub zog | 800W, AC110 / 220V, 50 ~ 60HZ, 10A | |
| Ua haujlwm ib puag ncig | Kub: 20 ~ 30 ° C.Humidity: 40 ~ 70% (tsis muaj condensate) | |
| Tshuab loj / hnyav | L1720 * W 860 * H 1580mm / 160kg | |
| Packing loj / hnyav | L1820 * W 820 * H 720mm / 180kg | |

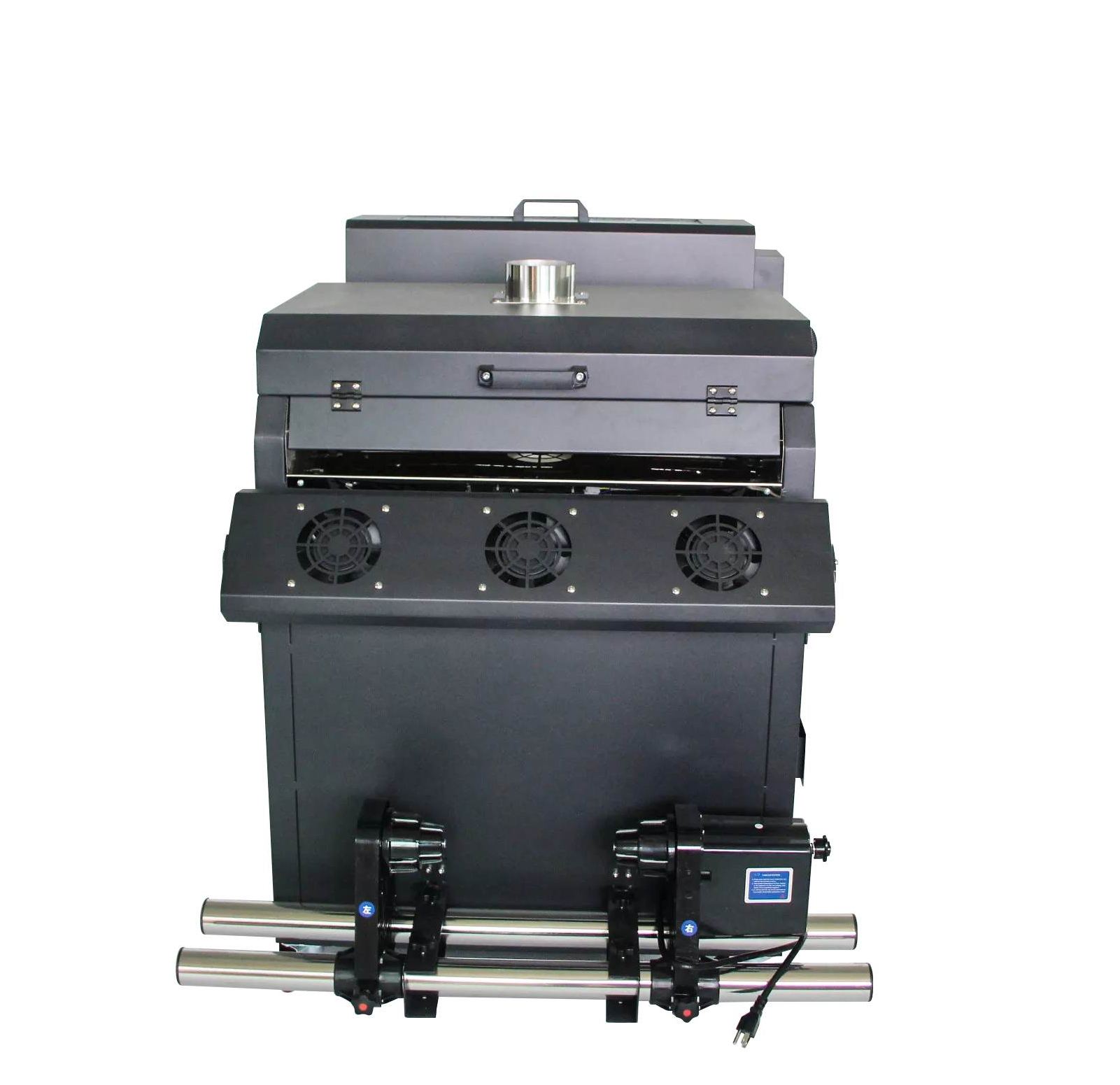

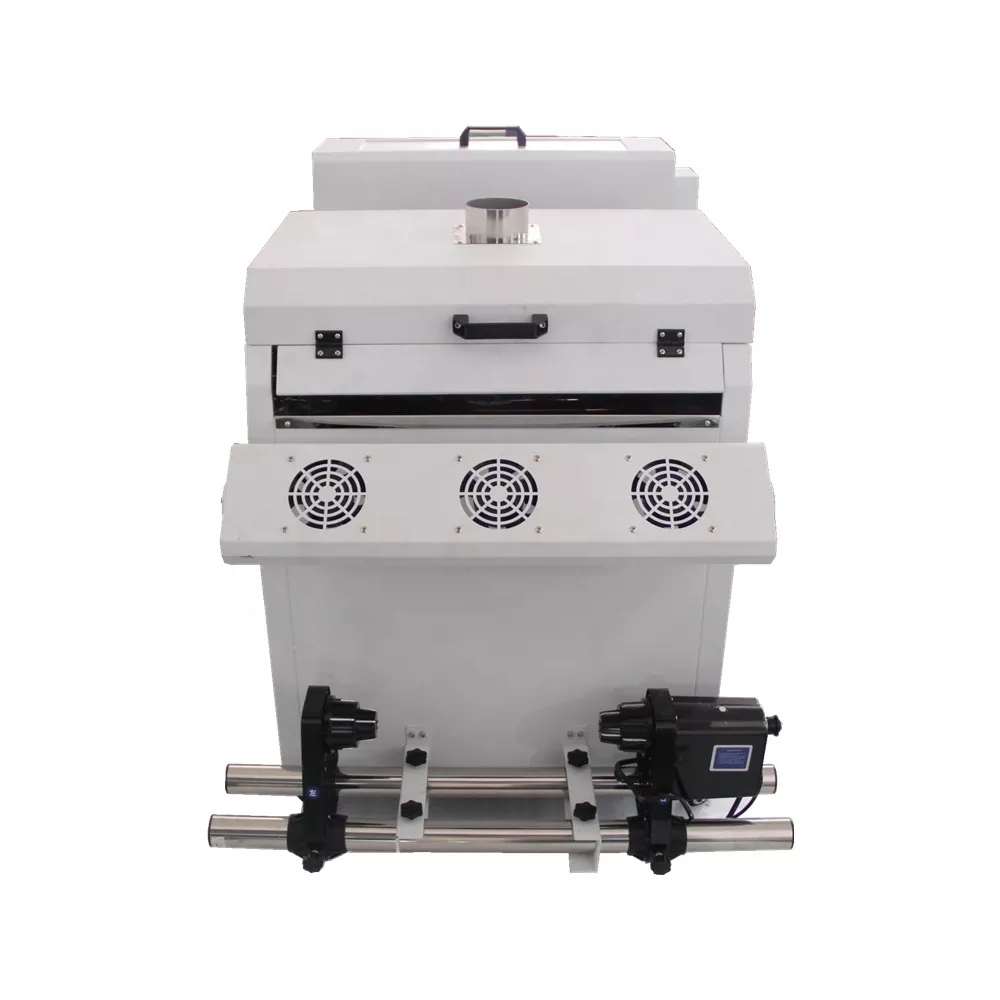

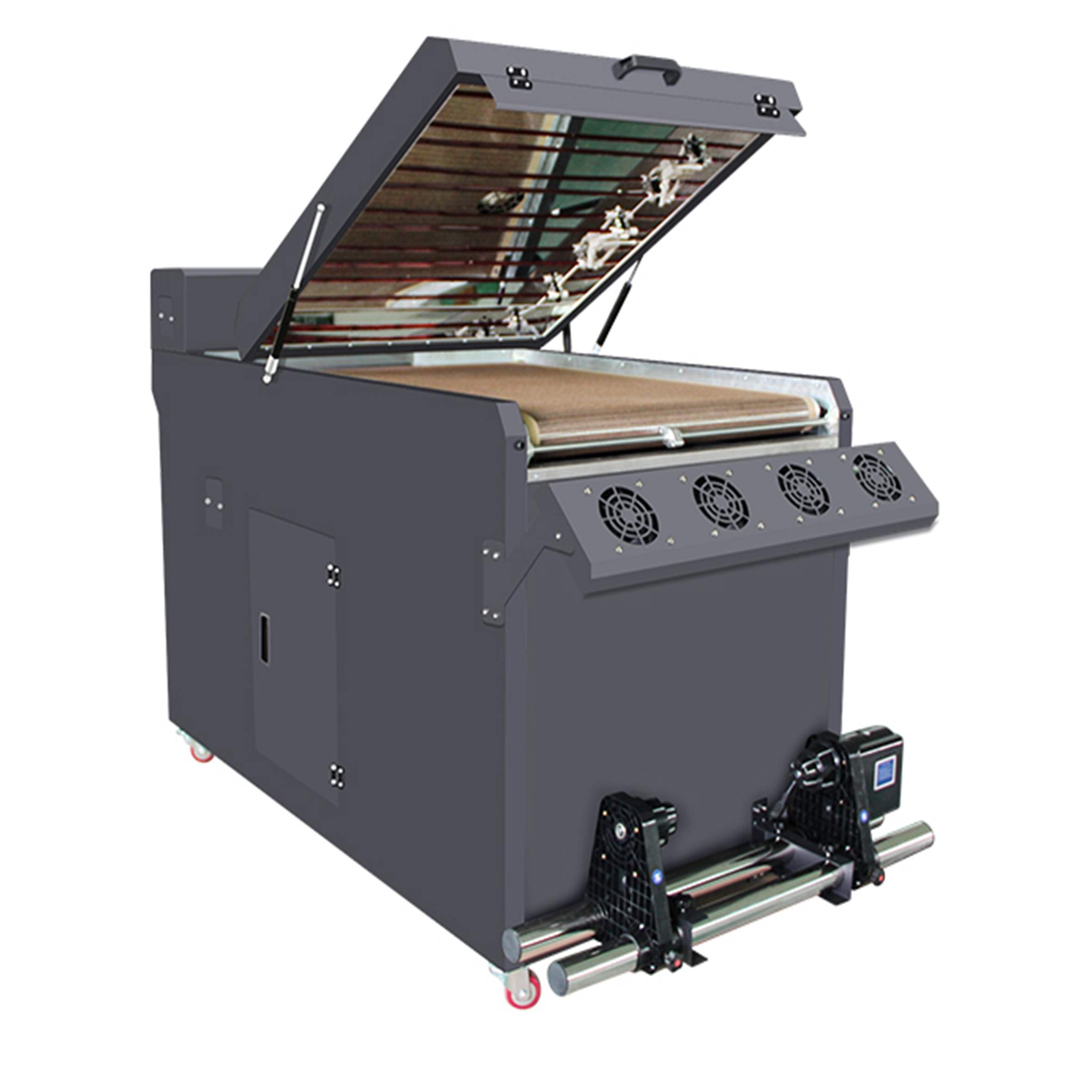

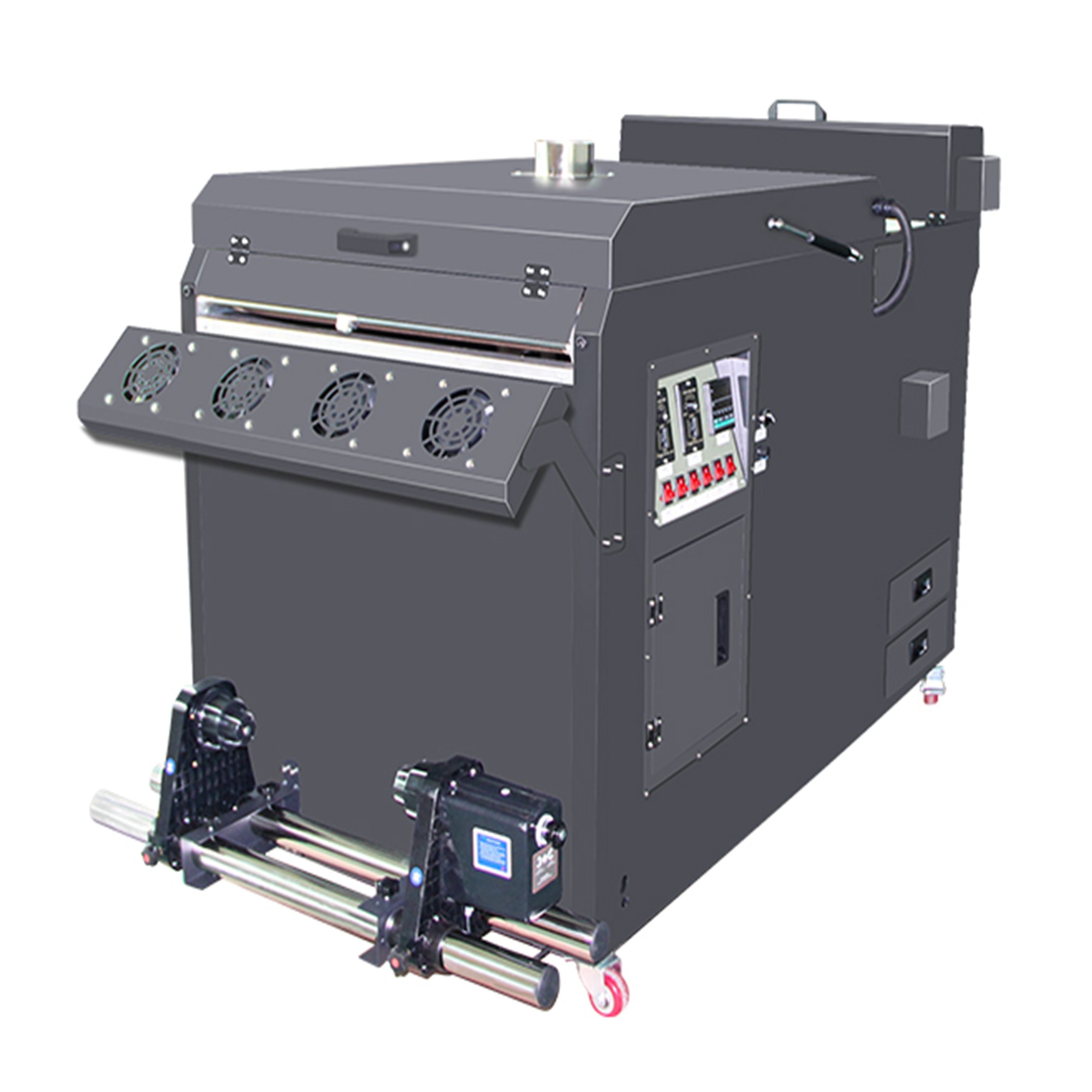

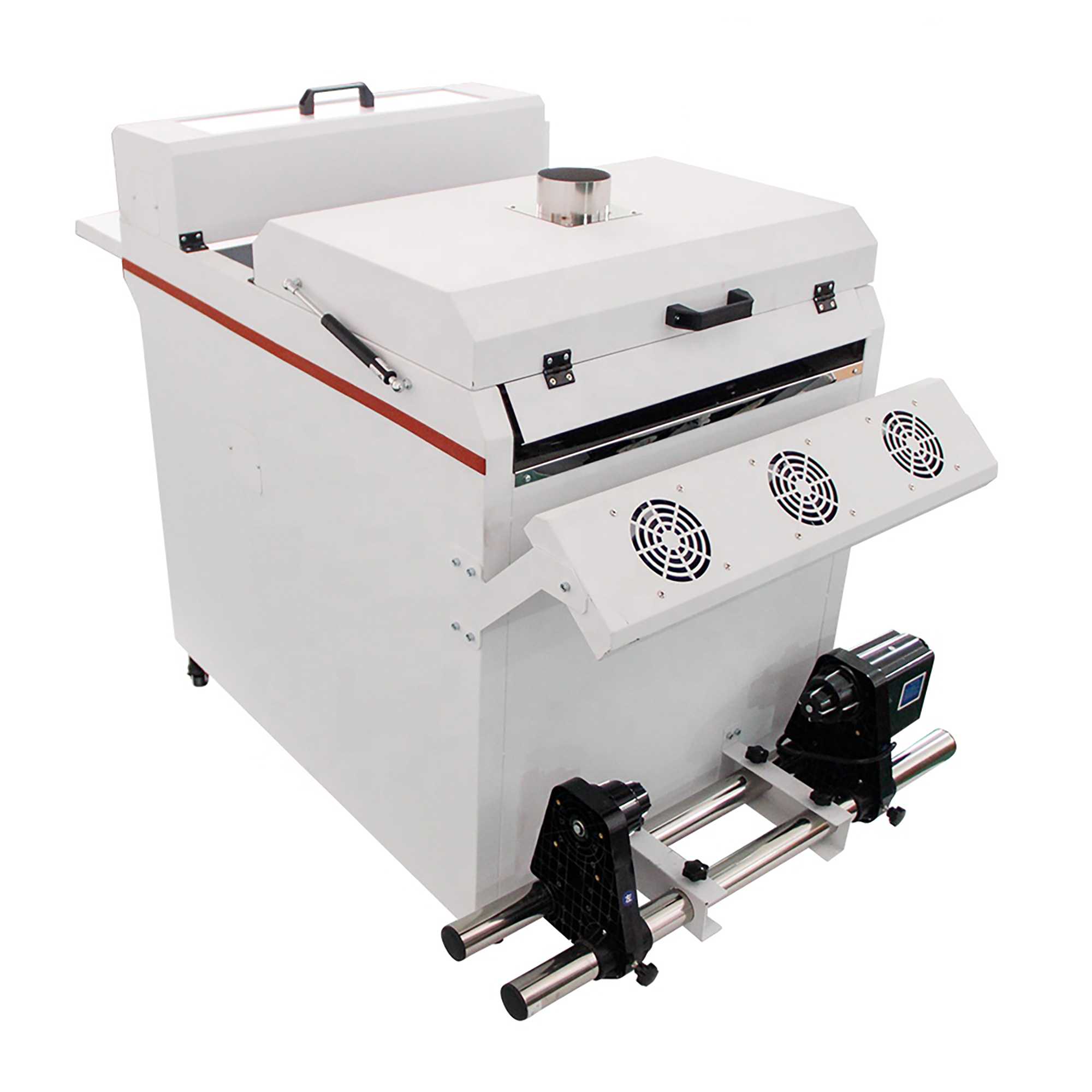

| DTF Hmoov Shaking Tshuab Parameters | ||
| Qhov hluav taws xob | AC 110 / 220V, 50 ~ 60HZ | |
| Hwj chim | 3000 W | 5000 W |
| Suab nrov | 30db Nruab nrab | |
| Kub | Kub: 0 ~ 400 ° C (Adjustable) | |
| Tshuab loj / hnyav | L1300 * W 920 * H 1220mm / 120kg | L1930 * W 900 * H 1130mm / 180kg |
| Packing loj / hnyav | L1380 * W 960 * H 1230mm / 150kg | L 1970 * W 950 * H 1290mm / 200kg |
Qhov zoo ntawm DTF Printing
LUB TSEV KAWM NTAWV
Ua ntej thiab tom qab cua sov
Suction platform hloov
DAWB CEEB TOOM
Nruab nrog tus cwj mem dawb tsis siv neeg ncig thiab nplawm sib xyaw ua haujlwm, kom cov number case dawb tsis yooj yim los thaiv, tus number case liquidity yog qhov zoo, yooj yim los ntxuav.
IMPORTED THK linear mute guide rail
THK linear mute guide rail tau txais yuav, uas tsis muaj suab nrov, kev ua haujlwm ruaj khov dua thiab lub neej ntev dua.
Hosonsoft CORE BOARDS
Txais yuav Hosonsoft boards.ntau lub luag haujlwm.Precision thiab stability.high-speed processing ntawm cov hauj lwm luam ntawv.
CONTROL BOX
cua sov thiab cua nqus dej ua haujlwm.coj band.shake hmoov, hmoov muaj nuj nqi thiab lwm yam
ESPON I3200 Printhead
Qhov nrawm nrawm dua thiab txuag lub sijhawm, qhov tseeb luam ntawv tuaj yeem ncav cuag 2400dpi, thiab cov lus me me li 0.5 hli yog qhov tseeb thiab ntse, cov xim zoo nkauj thiab kev luam ntawv siab yog siab.
MAIN POWER SUPPLY
Lub tshuab ziab khaub ncaws sab saum toj ntawm lub phaj pem hauv ntej
ANTI-COLLISION SYSTEM
Cov cuab yeej tiv thaiv kev sib tsoo ntawm ob sab ntawm lub tsheb thauj khoom.zoo tiv thaiv lub taub hau ntawm kev sib tsoo
DAWB INK FILTER
Tag nrho lim impurities, ua tus number case ntau ilv thiab smoother
LUB TSHUAB QHOV CHAW UA HAUJ LWM
Pem hauv ntej thiab nraub qaum xovxwm pas nrig txuas, ib tus neeg los ua kom tiav cov khoom hloov pauv yam tsis muaj kev txhawj xeeb. "
INK STACK
Ob lub taub hau nqa thiab inking chaw nres tsheb yog ua los ntawm CNC, nqus tus number case thiab scraping number case kom raug thiab zoo.
Pem hauv ntej thiab nram qab cua sov phaj
Cov phaj cua sov pem hauv ntej thiab sab nraub qaum kom qhuav cov yeeb yaj kiab kom tsis txhob ua kom cov yeeb yaj kiab ntub dej rau lub sijhawm, thiab nws kuj tso cai rau tus number case kom zoo dua rau ntawm cov yeeb yaj kiab, tsis muaj roj thiab dej.
Roj hmab nias log
High density roj hmab xovxwm log, tsis muaj deformation, tsis stretch, zaj duab xis raug rau 0.1 hli.
Daim ntawv ntes
Nruab nrog ib daim ntawv ntes, yooj yim kom paub tsis muaj neeg saib xyuas.
servo lub cev muaj zog
Ua tau zoo txo qhov yuam kev, tswj lub suab nrov, thiab xyuas kom meej qhov tseeb ntawm cov kab ke sib kis
Bracket nqus
Nws tuaj yeem ua rau lub tshuab luam ntawv ruaj khov thiab tsis shaker thaum ua haujlwm, kom cov khoom luam tawm yog qhov tseeb dua.
Txias kiv cua
Nws tuaj yeem ua kom txias rau lub mainboard ntev.
Fluorescent number case daws
peb 60cm dtf 3heads tshuab luam ntawv tuaj yeem paub luam ntawv fluorescent number case.Fluo daj, Fluo ntsuab, Fluo magenta, Fluo txiv kab ntxwv
