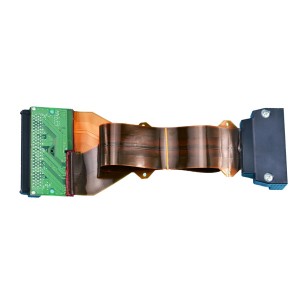

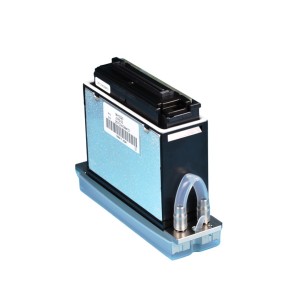

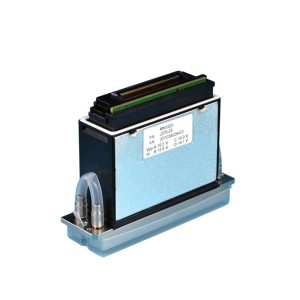

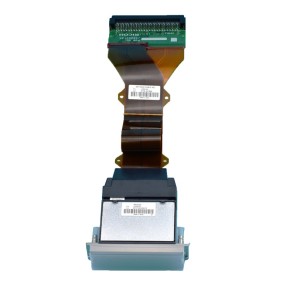

RICOH G6
Feature
RICOH G6 print head, print speed is about 35% higher than G5. There are two models, one is MH5320 (one head and two colors), and the other is MH5340 (one head and four colors). You can choose one head or two colors freely according to your needs. The sixth agent optical GEN6 nozzle, on the basis of ensuring high image quality and high production efficiency, strengthens ink compatibility and prolongs service life.
Ricoh G6 print head parameter introduction: product composition MH5320 (one head and two colors)
When one color is used: 150dpi×4 columns/color→600dpi
When using 2 colors: 150dpi×2 columns/color→300dpi
When using 4 colors: 150dpi×1 column/color→150dpi
Ricoh MH5320 nozzle product positioning jet flow = number of nozzles × number of orifices × ignition frequency.
Specification
| MH5320 | MH5340 | MH5320 Type A | |
| Method | Piston pusher with metallic diaphragm plate | ||
| Print Width | 54.1 mm (2.1") | ||
| Number of nozzles | 1,280 (4 × 320 channels), staggered | ||
| Nozzle spacing (4 color printing) | 1/150"(0.1693 mm) | ||
| Nozzle spacing (Row to row distance) | A : 1.101mm B : 11.811mm | ||
| Compatible ink | UV, Solvent, Aqueous, Others. | ||
| Total printhead dimensions | 89(W) × 66.3(D) × 24.51(H) mm (3.5" × 2.6" × 1.0") | ||
| Weight | 228g (including 45C cable) | ||
| Max.number of color inks | 2 colors | 4 colors | 4 colors |
| Operating temperature range | 60℃ | ||
| Temperature control | Integrated heater and thermistor | ||
| Jetting frequency | 50kHz (3 levels) | ||
| 40kHz (4 levels) | |||
| Grey-scale | 4 levels | ||
| Drop volume | Binary mode : 5pl / Grey-scale mode : 5-15pl | ||
| Viscosity range | 10～12mPa・s | ||
| Surface tension | 28～35mN/m | ||
| Ink port | Yes | Yes | No |
| Separately sold parts | MH5320 / MH5340 / MH5320 Type A dedicated cable | ||
