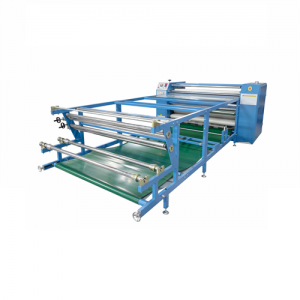

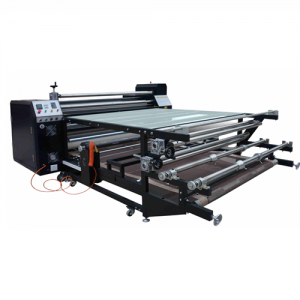

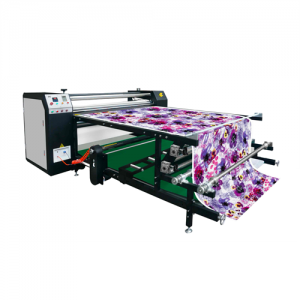

Rotary Heater

Short Description:

UniPrint rotary heater helps you with the heat transfer process. It is a vital step in sublimation printing. The heat press machine allows you to transfer the print pattern from sublimation paper to polyester-based textiles. The heating and pressing ensure that the ink has dissolved properly. You can use our rotary heater for both cutting pieces and roll-to-roll fabric.

Send email to us

Product Detail

Product Tags

Machine parameter

Voltage(V)	220/380 3Phases	220/380 3Phases	220/380 3Phases
Power (KW)	18	27	30
Roller Diameter(MM)	420	420	420
Temperature range(°C)	0~390	0~390	0~390
Speed(M/Min)	0~6	0~6	0~6
Weight(KG)	1200	1800	2000
Packing Dimension(CM)	215145170	273&139*170	290145170

Voltage(V)	220/380 3Phases	220/380 3Phases	220/380 3Phases	220/380 3Phases
Power (KW)	32.4	48.6	54	86.4
Roller Diameter(MM)	600	600	600	600
Temperature range(°C)	0~390	0~390	0~390	0~390
Speed(M/Min)	0~8	0~8	0~8	0~8
Weight(KG)	1700	2300	2500	4000
Packing Dimension(CM)	243167170	273167170	288167170	430177170

Rotary Heat Press Machine Advantages

1. Advanced technology of Electrical control ,blanket can separate from drum by manual/automatic.
2. Motor drive blanket goes back to drum and enter
3. Blanket has automatic alignment function
4. Transfer by 150Meter-300meter/hour(590inches-1180inches)
5. digital thermostatically controlled, motor digital adjustment, accuracy can up to （±1-2℃）
6. Chrome drum technology, hardness, rarely to getting apart from drum. Best transfer effect.
7. Advance heating technology, circuit system,even heating.
8. Highten oil tank, turn off valve automatically. Easy to change thermal oil, never explosion
