UV2030

UV2030

Short Description:

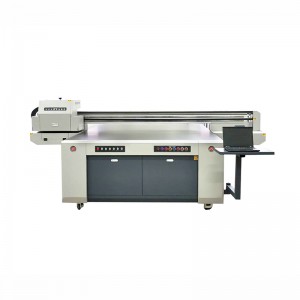

UV2030 large format UV flatbed printer is another large format UV flatbed printer from UniPrint that you can use for bulk UV printing. The printer has a negative pressure ink supply system to keep the print head stable when printing. The maximum print size supported by this printer is 2000mmx3000mm, with a resolution of 720x900dpi.


Product Detail

Product Tags

Video

Machine Parameter

Item UV FLATBED PRINTER
Model  UV2030
Nozzle Configuration  Epson DX5, DX7, i3200, Ricoh G5(Suggested)
Max print size  2000mm*3000mm
Print height 10cm or can be customized
Print speed (EPSON) Production 4m2/H;  High quality 3.5m2/H
Print speed (RICOH) Production 15m2/H;  High quality 12m2/H
Print resolution Epson: 720*360dpi 720*720dpi 720*1080dpi 720*1440dpi;Ricoh: 720*600dpi 720*900dpi
Print material Type:  Acrylic, Aluminum, Ceramic, Foam board, Metal, Glass, Cardboard, Leather, Phone case and other flat objects
Ink Color  4Color(C、M、Y、K)                                                          5Color(C、M、Y、K、W)                                                           6Color(C、M、Y、K、W、V)
Ink type UV ink. Solvent ink, Textile ink
Ink Supply System Negative pressure Ink Supply System
UV Curing System LED UV Lamp / Water cooling system
Rip software  RiPrint, Print Factory
Image format  TIFF,JPEG,EPS,PDF etc
Voltage AC220V  50-60HZ
Power supply hosts the largest 1350w,LED-the UV lamp's largest 200-1500w vacuum adsorption platform
Data interface 3.0 high speed USB interface
Operation System  Microsoft Windows7/10
Operating environment Temperature: 20-35℃ ; Humidity: 60%-80%
Machine size  3845*3642*1447mm/1200KG
Packing size  Machine head:3730*820*1070mm ;                                        Machine body:3950*2290*1340mm   Total 1900KG
Packing way Wooden package (plywood export standard)

Advantages

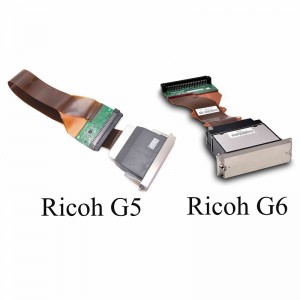

Industrial Ricoh printhead, G5 or G6 optional, with high speed and high resolution printing.
Anti-static device. Effective remove static from printing materials. Avoid electric damage to the printhead/nozzles
Large printing area 2000*3000mm. Or can be customized platform
Apply Alumina platform with Anodic oxidation process, prevents the harder material from scratching the platform.
Fully steel structure prevent deformation even after long term use.
Honeycomb structure, stronger adsorption capacity
High precision THK mute linear guide rail
