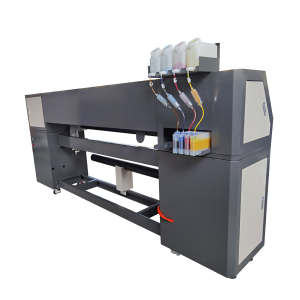

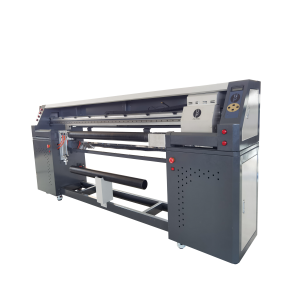

Multi Functional 360° Digital Socks Printing Machine

Multi Functional 360° Digital Socks Printing Machine

Short Description:

Digital socks printer suitable for all kinds materials socks.  such as cotton socks, polyester sock, bamboo socks. wool socks etc.. Various socks model like dress socks. sports/athletic socks. casual wear socks etc.

※ Uniprint socks printing machine adopt dettachable printing roller which allow us to print 2 socks at same time.

※ Print-on-demond technology which allow us to do custom sock printing in less qty.

※ With CMYK 4color inks could print any partterns/designs with higher color fidelty and higher printing reolsutions.

※ Equipped with 2pcs Original Epson printhead work out high capacity 50pair/hour (400pairs/day)

Product Detail

Product Tags

Technical parameter

Model UP1200
Printing width 1200MM
Print head EPSON DX5
Print head Qty 1-2 head Optional
Ink color C M Y K.  4Colors/ C M Y K O R G B.  8Colors(reactive ink optional)
Print resolution 720*360dpi/720*720dpi/
Ink system Large ink tank 1.5L*CMYK 4colors / Secondary ink tank 200ml * CMYK 4colors, Uninterrupted continuous service
Print speed Draft mode:   720X360dpi/4Pass 60pairs/H
Production mode:    720X720dpi/6Pass 50pairs/H
Power AC110~220V±10   Customizable
Interface 3.0 high speed USB interface
Computer configuration Microsoft Windows98/Me /2000 /XP/Win7/win10
Rip software Photoprint//Riprint
Working environment Optimum temperature: 24℃-28℃, Relative humidity 20%-80%
Machine size 2870*  500* 1200mm(  L*W*H)
Machine weight 180KG

Advantage in components

Board Top brand boards.  Shrink ink dot and high-definition inkjet effect, ensure the stability of the motherboard and high precision printing
X Motor X axis adopts 200W integrated servo drive motor, high speed and stable printing guarantee.
Y Motor Y-axis adopts stepping motor, which makes the walking more accurate
Guide rail The X axis of the guide rail is driven by the upper silver wire rod
Machine frame Frame integral high-density frame, not easy to deform and shock – proof
Power board Integrated power board, ensure the smooth operation of equipment circuit
Wire cable The whole machine is processed with PET glue wrapping wire to prevent circuit disorder and static electricity
Emergency Key External emergency stop, convenient for stop operation
Linear guide Linear guide rail, high precision, low noise, wear resistance, to ensure the smooth movement of the carriage
Synchronizing wheel belt High precision synchronous pulley ensures movement and accuracy
Print head Japan Original EPSON printhead
Shaft bearing Imported bearings ensure machine accuracy
Tanks towline Silent drag chain, low noise, long life
